Princeton Reverb
This one is going to be a Princeton Reverb based on the Fender AA1164 schematics
Here's the layout plan for wiring.
And here's the schematics. Rectifier tube is going to be GZ34 instead of the original 5U4G. Tube Amp Doctor sells this small parts package without tubes, transformers and chassis, Tube Town sells a nice chassis which I'll be using for this project.
Turret boards have been done and the components have been soldered. I added also a BIAS adjustment pot to the schema.
Front side is going to have 8 pots, 2 input jacks, power switch and pilot light.
In the back: mains cable, fuse holders, triode/pentode switch, impedance selector, attenuator resistors, attenuator switch, speaker jack, presence pot, NFB switch (normal-light-heavy), preamp BIAS switch (hot-cool-normal), dwell pot for reverb and tremolo/reverb jack.
Wiring has been done.
Almost ready to get in the box.
I'm using here the transformers, tubes and other stuff from the Tweedle Dee amp which I built earlier. I didn't actually like it.
And besides I have already one 5E3-version Tweed Deluxe which I really like.
I'm using here the transformers, tubes and other stuff from the Tweedle Dee amp which I built earlier. I didn't actually like it.
And besides I have already one 5E3-version Tweed Deluxe which I really like.

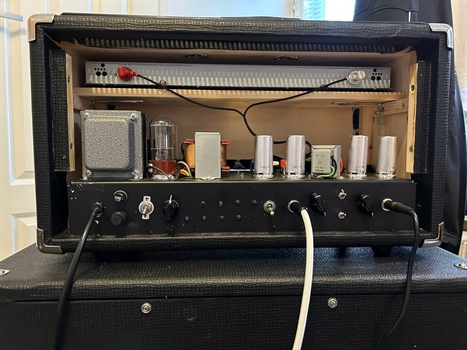

And here it is. Ready for testing
